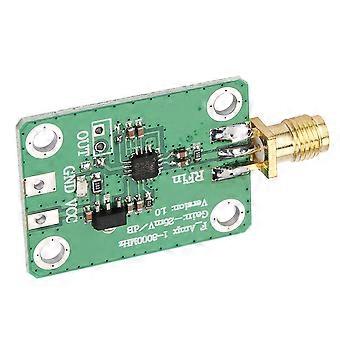

Features: RF detector is composed of AD8318 chip. The design of power supply voltage stabilizing circuit makes the detection accuracy tend to official data. The working frequency range is 1-8000mhz, which can detect the RF signal from -65 to 5dBm, and has the detection signal strength of dc voltage output (with dBm as the unit, logarithmic detection). RF signal is converted to DC voltage output. RF signals correspond to the amplitude or power of the output voltage. It can be used as signal strength indicator RSSI, spectrum analyzer, gain control. This Logarithmic detector has very good sensitivity. Specification: Working frequency: 1-8000MHz Dynamic range: -65dbm to + 5dBm Detection slope: -25 mV/dB (typical value) Detection output voltage range: 0.5-2.1v Power voltage: 7-15vdc (including power supply voltage regulator circuit) Input impedance: 50 ohm Rf interface: standard SMA bus head Size: 5*3 cm /1.97*1.18inch Weight: Approx.5g/0.2oz Package list: 1 x 1-8000MHz AD8318 Rf logarithmic detector 1、RF detector is composed of AD8318 chip. The design of power supply voltage stabilizing circuit makes the detection accuracy tend to official data. 2、The working frequency range is 1-8000mhz, which can detect the RF signal from -65 to 5dBm, and has the detection signal strength of dc voltage output (with dBm as the unit, logarithmic detection). 3、RF signal is converted to DC voltage output. RF signals correspond to the amplitude or power of the output voltage. 4、It can be used as signal strength indicator RSSI, spectrum analyzer, gain control. 5、This Logarithmic detector has very good sensitivity.
